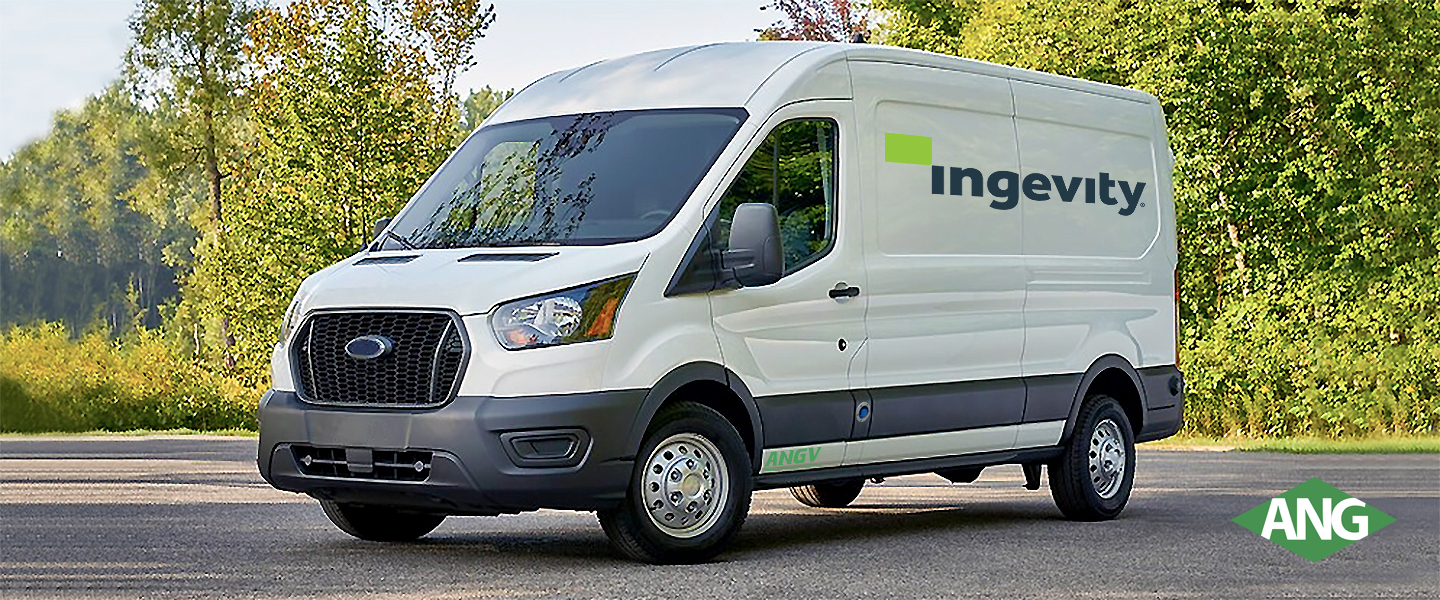

Ford ANG Transit Van 3.5L PFDI V6 - Bi-Fuel Adsorbed Natural Gas System

⇛ 2021-24 model year EPA certified Bi-fuel Adsorbed Natural Gas Systems (Natural Gas and Gasoline Operation).
⇛ 2023 & 2024 Ford Engine Test Group: R/PFMXD03.56BG. T150, T250, T350 Emissions Standards: Federal Tier 3 Bin 150
⇛ A 900 psi low-pressure bi-fuel natural gas system (ANG 900 psi tank holds twice the volume of compressed natural gas tank at equivalent pressures).
⇛ 3.5L PFDI V6 Engine Only. (Port Fueled Direct Injection)
⇛ ANG tank (6 GGE) configured to accommodate typical fleet daily mileage requirement.
⇛ Two tank install locations for cargo van with 148" wheelbase (130" wheelbase limted tank options). Front to back behind driver seat or left to right behind driver and passenger seat. See below for cargo tank options drawings.
⇛ ANG truck still maintains use of conventional gasoline tank eliminating range anxiety.
⇛ Includes a metal black powder coated tank cover.

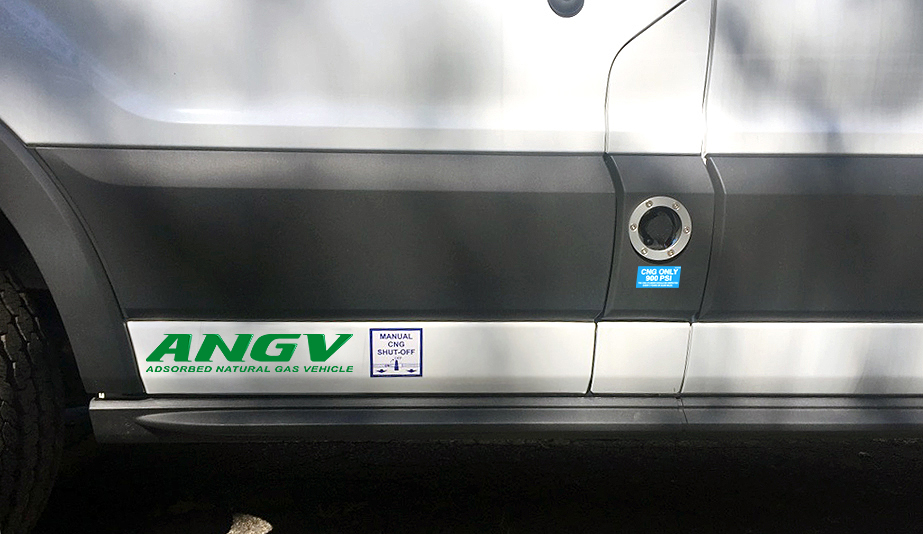

⇛ Includes quarter turn manual shut-off valve located under driver side door and two 1 micron in-line coalescing filters.
⇛ ANG fuel economy equivalent to that of gasoline.
⇛ ANG system requires gasoline to be in the vehicle at all times for the ANG mode to operate and is designed to predominately operate in ANG mode. The ANG system will operate only if there is natural gas in the vehicle and the gasoline low level light is not illuminated. Gasoline only mode may experience some performance loss, we recommend 93 octane gasoline or higher.
⇛ ANG system warranty of 80,000 miles/8 (whichever comes first) year emissions components, 36,000 miles/3 year (whichever comes first) non-emissions components and limited engine warranty of 5 year/60,000 miles (whichever comes first).
⇛ ANG tank enables the use of a low-cost fueling appliance supporting private fueling.
⇛ ANG fueling appliance can be installed onsite (e.g., vehicle depot, commercial or office parking lot, etc.) to maximize use of natural gas, savings, and productivity.
⇛ There is no fuel selector switch.
⇛ Seamlessly Intergrated with Ford vehicle and maintains all OBD II functionality.
⇛ HOV lane eligible in many states and tax credits may be available, Check with your tax advisor.


Adsorbed natural gas (ANG) NeuFuel technology is made possible by Ingevity’s activated carbon which reduces the storage pressure of natural gas without sacrificing the on-board volume of gas stored through a process known as adsorption. Lower-pressure storage removes the need for large, costly commercial CNG stations and enables safe, economic fueling at work and at home.
